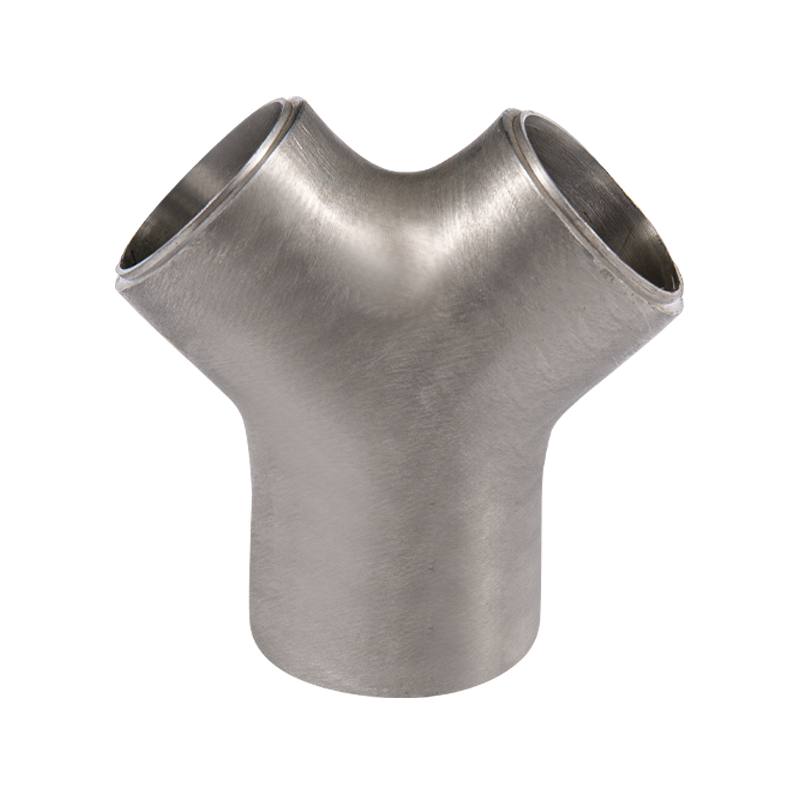

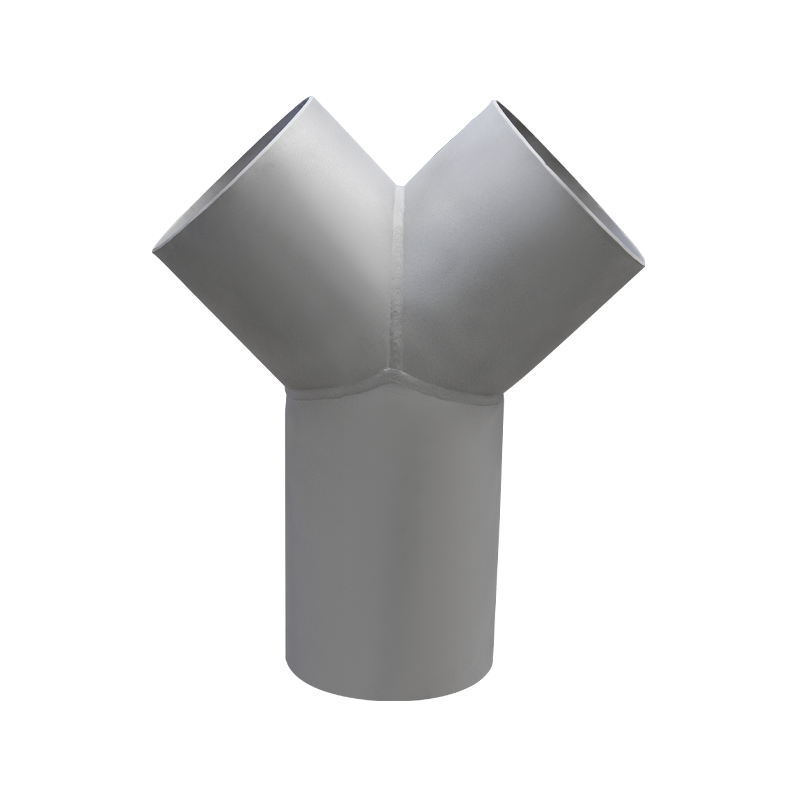

The Y-type Lateral Tee is a versatile and essential pipe fitting designed for applications where cleanliness and corrosion resistance are paramount. This fitting features a Y-shaped branch that allows for smooth, efficient fluid flow with minimal disruption, making it ideal for industries that require high performance and reliability. Commonly used in shipbuilding, food and pharmaceuticals, nuclear power, and petrochemical industries, the Y-type Lateral Tee ensures robust and secure connections even in the most demanding environments.One of the standout qualities of the Y-type Lateral Tee is its excellent corrosion resistance, making it perfect for fluid transportation systems exposed to aggressive substances or extreme conditions. Whether you're dealing with sensitive liquids in the pharmaceutical sector or high-pressure fluids in the petrochemical industry, this fitting guarantees superior reliability and durability. Additionally, its precise design makes it a perfect choice for long-distance pipelines that need to maintain consistent flow without compromising on safety.
Function | • Y-shaped bifurcated design (30-60° branch angle) • Reduces fluid impact by 40-50% vs conventional tees • Seamless one-piece molding eliminates weak welds • 30% lower pressure loss than right-angle tees |
Production Process | 1. Seamless hot-extrusion forming (patented process) 2. Localized induction heating & drawing 3. Solution annealing (ASTM A960) 4. 100% automated UT/RT inspection 5. CNC beveling (±0.5° tolerance) |
Applications | • Pharmaceutical CIP systems • Nuclear coolant piping • Marine fuel lines (ABS/DNV certified) • Petrochemical long-distance pipelines |
Technical Data | • Size range: DN15-DN1200 (48") • Pressure rating: Class 150-2500# • Flow efficiency: ≥92% (compared to straight pipe) • Surface roughness: Ra ≤3.2μm (sanitary grade available) |
Materials | • 316L/904L stainless steel (ASTM A403) • Nickel alloys (UNS N06625) • Duplex steel (UNS S31803) • Titanium Gr.2 (ASTM B363) |
Standards | • ASME B16.9/B16.25 • ISO 9001/13485 (pharma grade) • PED 2014/68/EU • NACE MR0175 for sour service |
