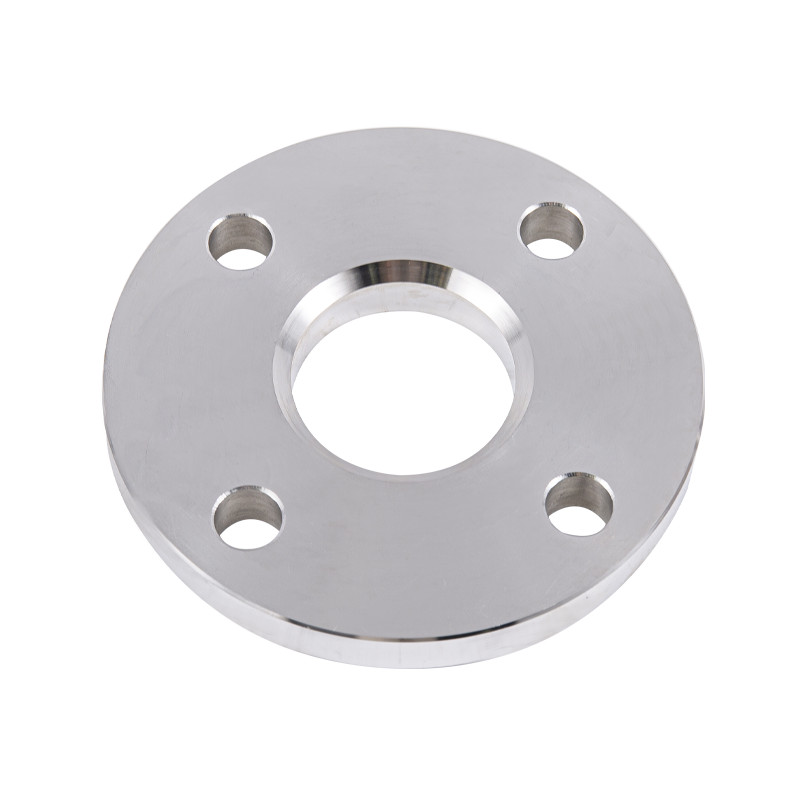

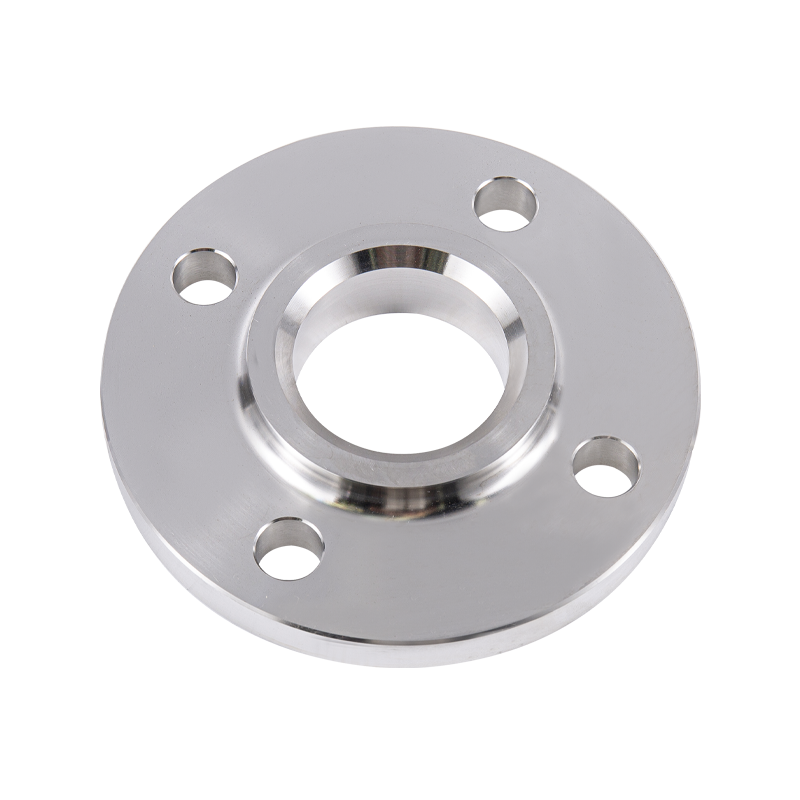

Socket Welding Flange

Home / Products / Flange / Socket Welding Flange
Flange

Socket Welding Flange

The Socket Welding Flange redefines high-pressure pipeline connections by integrating superior strength with seamless fluid dynamics, engineered to deliver unmatched performance in compact, high-stakes applications. Designed for small-diameter pipes, this flange employs a socket welding configuration that encapsulates the weld joint within the flange itself, eliminating external weld protrusions and minimizing flow resistance—a critical advantage in systems where turbulence reduction and hygiene are paramount. The hidden weld not only streamlines cleaning and inspection in sterile environments like pharmaceutical or food processing plants but also enhances structural integrity, resisting vibration and pressure surges in oil and gas refineries, chemical reactors, or high-pressure steam lines. Precision-machined from forged carbon steel or stainless steel, it combines corrosion resistance with exceptional tensile strength, ensuring leak-proof sealing even under extreme temperatures and pressures. Its compact design simplifies installation in tight spaces, while the robust connection withstands cyclic thermal expansion, making it ideal for offshore platforms, power generation turbines, and hydraulic systems. By eliminating potential weak points and reducing maintenance cycles, this flange empowers industries to prioritize safety without compromising efficiency. Backed by compliance with ASME B16.5 standards and rigorous non-destructive testing, it guarantees reliability in mission-critical operations. For engineers seeking a compact, high-pressure solution that marries durability with fluid optimization, the Socket Welding Flange is the ultimate choice. Elevate your infrastructure today with our precision-engineered flanges, where innovation meets resilience, enabling your systems to perform with precision, safety, and unwavering confidence. Choose excellence, choose endurance, and transform your pipeline’s potential.

SPECIFICATIONS
product details
Functional Characteristics - Socket welding connection
- Hidden weld design reduces flow resistance
- Optimized for small-diameter high-pressure applications
- Superior sealing performance
Manufacturing Process 1. Material selection (carbon steel/stainless steel/alloy steel)
2. Precision forging
3. Heat treatment
4. Machining & finishing
5. Non-destructive testing (NDT)
6. Surface treatment
Industry Applications - High-pressure steam systems
- Pharmaceutical clean pipelines
- Nuclear power plant cooling circuits
Technical Specifications - Diameter range: DN15-DN150
- Pressure rating: 1.6-16MPa
- Standard materials: 304/316 stainless steel, alloy steel
