Butt Weld Stub-End

Home / Products / Butt Weld Pipe Fittings / Butt Weld Stub-End
Butt Weld Pipe Fittings

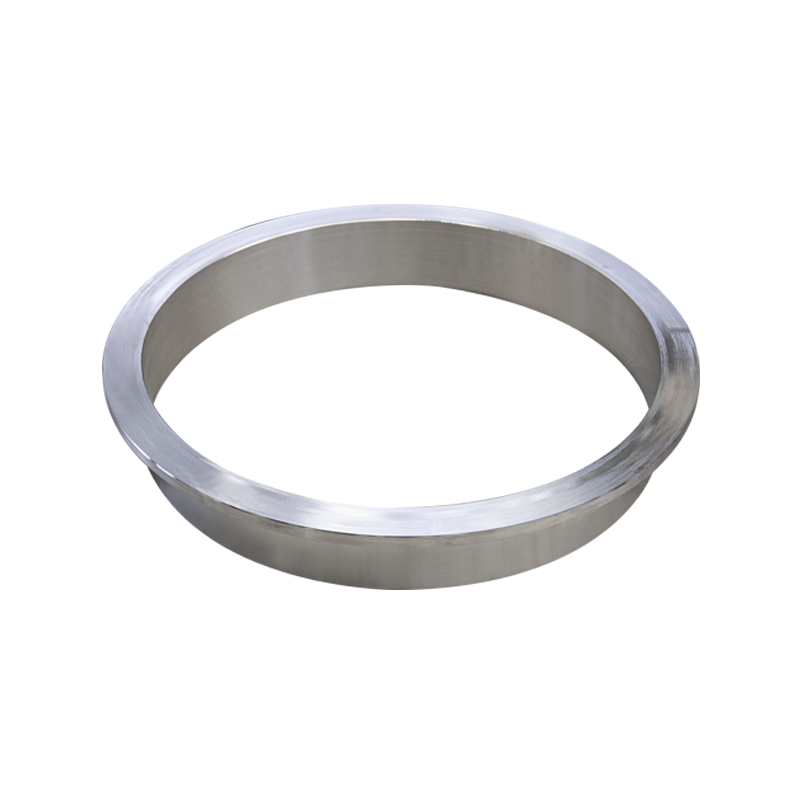

Butt Weld Stub-End

The Butt Weld Stub-end is a versatile solution for modern piping systems, combining robust performance with unmatched installation flexibility. Designed to terminate pipelines while allowing easy connection to flanges or other components, it simplifies maintenance, reduces downtime, and ensures leak-proof integrity even under high-pressure and corrosive conditions. Its precision-engineered weld neck provides a seamless transition between pipes and flanges, eliminating weak points and ensuring long-term durability in the most demanding environments. In industrial applications such as chemical processing, oil and gas, and power generation, the Butt Weld Stub-end excels in managing abrasive media, extreme temperatures, and fluctuating pressures, minimizing the risk of costly leaks or failures. Municipal water and wastewater systems benefit from its corrosion-resistant materials—like stainless steel or duplex alloys—ensuring decades of reliable service while meeting stringent safety and hygiene standards. Food and pharmaceutical industries rely on its smooth, crevice-free design to maintain sanitary conditions and prevent contamination. By enabling quick disassembly and reassembly, this component reduces labor costs and operational disruptions during inspections or repairs. Choosing the Butt Weld Stub-end means investing in a future-ready infrastructure that balances strength, adaptability, and cost efficiency. Partner with us to revolutionize your piping systems—engineered to perform, built to last. Contact our experts today and discover how this critical component can elevate your projects to new standards of excellence. Act now to secure a solution that combines innovation, reliability, and effortless scalability!

SPECIFICATIONS
product details
Function Introduction Stub-end is a pipe fitting that forms the edge of the pipe mouth into a vertical edge along a specific curve through stamping or welding. It is mainly used for connecting pipes with flanges, valves, or other pipe fittings to enhance sealing and structural strength. Its design replaces complex drawing processes, optimizes material plastic flow, avoids cracking or wrinkling, reduces processing steps, and saves materials. It is especially suitable for high-pressure, corrosion-resistant, or precision fluid delivery systems.
Production Process 1. Material Selection: Stainless steel (304, 316L, duplex steel 2205), carbon steel, alloy steel, etc., customized based on working conditions.
2. Forming Process:
- Cold Forming: For small-diameter products (DN15-DN600), seamless flanging via stamping or spinning.
- Argon Arc Welding: For large-diameter products (DN600+), ensuring edge flatness and strength.
3. Quality Inspection: Spectral analysis, pressure testing, and non-destructive testing (X-ray flaw detection) to ensure compliance with standards.
Application Fields - Petrochemical: Sealing connections for oil refining units, pipelines, and reaction vessels.
- Electricity & Nuclear Power: High-temperature, high-pressure steam pipelines and nuclear cooling systems.
- Ship & Machinery: Corrosion-resistant designs for seawater media and heavy machinery.
- Food & Medicine: Stainless steel for sterile fluid delivery, meeting hygiene standards.
Specification Range - Size: DN15-DN1200 (1/2"-24"), supports custom ultra-large diameters.
- Pressure Level: Wall thickness SCH5S-SCH160, suitable for low to high-pressure conditions.
